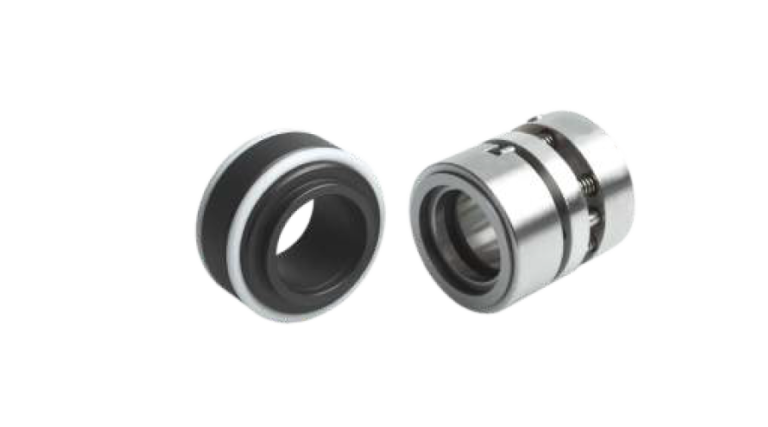

RS683/684 Multiple Springs Process Seals
Description
Overview
Features & benefits
- Single Seal
- Unbalanced
- Bi-Directional
- Multiple Springs
Operating Limits
- d1 = 20 – 100 mm (1.000” – 4.500”)
- p1 = 1.2 Mpa
- t = -35 – 160°C
- Vg = 25 m/s
Standard Materials Of Construction
- Rotary Faces : Silicon Carbide, Alumina Ceramic, Tungsten Carbide
- Stationary Seats : Carbon, Silicon Carbide, Tungsten Carbide
- Springs, other metal components : AISI 304, 316, Alloys
- Secondary Seals : EPDM, FEP, FPM, FEPM
Stationary Seats
- RS683: PS1
- RS684: PS2, LS7
