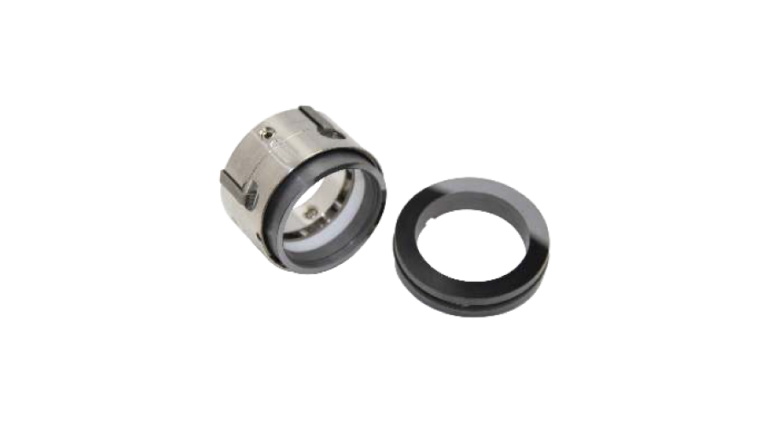

RS901/901t Multiple Spring, Ptfe Wedge Design
Description
Overview
Features & benefits
- Seals for extreme temperature & chemical services
- Compact narrow cross section design
- Multiple springs assures accurate face loading
- Flexible design compensates for shaft misalignment
- All components are held together by a snap ring in a unitized construction design
- Setting clips standard
- Easy installation & removal
- Field Repairable
Operating Limits
- Pressure : 200 PSI 13.8 Bar
- Temperature : -40°C to 260°C / -40°F to 500°F
Standard Materials Of Construction
- Faces : Carbon Graphite (Resin Impregnated), Antimony Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers : PTFE Wedge
- Metallurgy : 304, 316, Monel, Hastelloy C, Alloy 20
