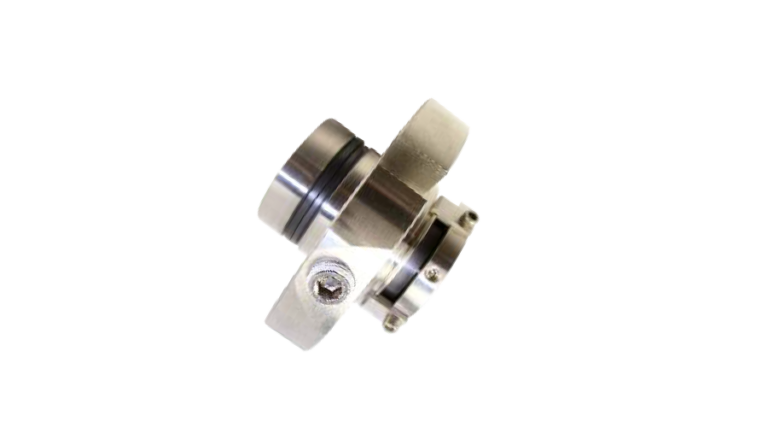

RSCD2pr Dual Cartridge W Pumping Ring
Description
Overview
Features & benefits
- Pumping ring standard
- For critical, toxic & non-lubricating fluids
- Stationary multiple spring cartridge design
- Easy cartridge installation
- Interchangeable components with S1 single cartridge
- ANSI pump – compatible
- Non-clogging in stuffing box
- Springs protected from the product
- Compensates for pressure reversals
- Inboard silicon carbide v/s silicon carbide faces combination is standard
- User friendly setting clips
- The industry’s only double cartridge seal with three identical monolithic silicon carbide faces
Operating Limits
- Pressure : Up to 300 PSI/20 Bar
- Temperature : From -40°C to 260°C, -40°F to500°F
- Call Factory for specific API plans & Barrier flushing pressures
Standard Materials Of Construction
- Faces : INBOARD Silicon Carbide/Silicon Carbide, OUTBOARD Carbon/Silicon Carbide Tungsten Carbide & Antimony Carbon available
- Elastomers : Viton*, Buna, PTFE, Neoprene, EPR, Kalrez*, FEP, AFLAS*, Chemraz*
- Metallurgy : 316 SS, Alloy 20, Hast B+C*
