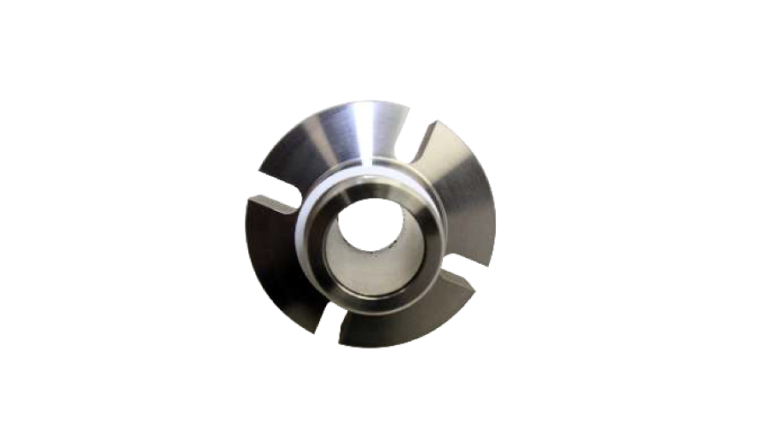

RSCS1BB Big Bore Single Cartridge
Description
Overview
Features & benefits
- Enlarged gland to fit standard big bore pumps
- Easy cartridge installation
- Stationary multiple spring design
- Springs isolated from product
- Rugged face design
- Identical seal face shapes make repairs easy & economical
- Hydraulically balanced design
- Handles pressure reversals & vacuum
- Flush connection standard
- Vent & Drain connections available upon request
- Big Bore gland alternative
- Interchangeable parts with D2 dual cartridges
- User friendly setting clips
- Confined gland gaskets
Operating Limits
- Pressure : Upto 250 PSI / 17 Bar
- Temperature : -40°C to 235°C*
Standard Materials Of Construction
- Faces : 316 SS, Alloy 20 Silicon Carbide / Silicon Carbide (Note: Tungsten Carbide & Antimony Carbon also available)
- Elastomers : Viton*, Buna, PTFE, Neoprene, EPR, Kalrez*, AFLAS*, Chemraz*
- Metallurgy : 304, 316, Monel, Alloy 20, Hast B+C* Carbon / Silicon Carbide
