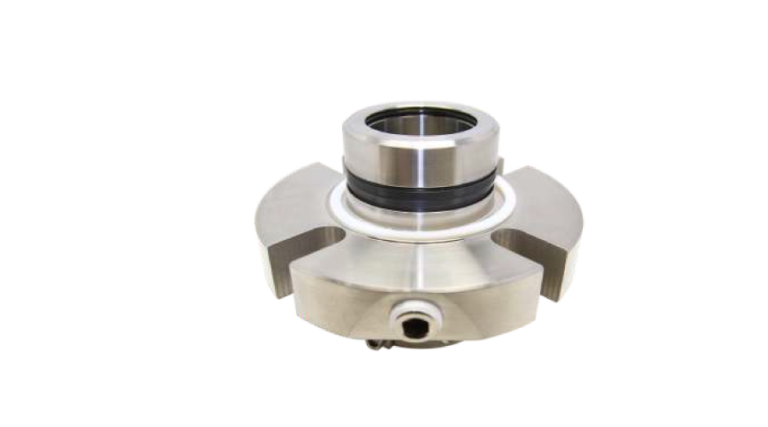

RSCS1wbc Welded Bellows Cartridge
Description
Overview
Features & benefits
- Easy cartridge installation
- Static “O” rings – No shaft fretting
- Universal gland design conforms to most common bolt circles
- Fits all ANSI pumps without modification
- Self-cleaning plates minimizes clogging
- Identical seal face shapes make repairs easy & economical
- Face lubricating enhanced by even face loading
- Balanced design – 300 PSI without modification
- Fits into narrow cross section pumps
Operating Limits
- Pressure : Up to 300 PSI/20 Bar
- Temperature : From -100°F to 400°F, -73°C to 205°C (depending on elastomer)
Standard Materials Of Construction
- Faces : Carbon, Tungsten Carbide, Silicon Carbide, Antimony Carbon
- Elastomers : Viton*, Buna, PTFE, Neoprene, EPR, Kalrez*, FEP, AFLAS*, Teflon Jacketed Viton
- Metallurgy : 316 SS, Hastelloy C, AM 350, Titanium, Alloy 20
